Description

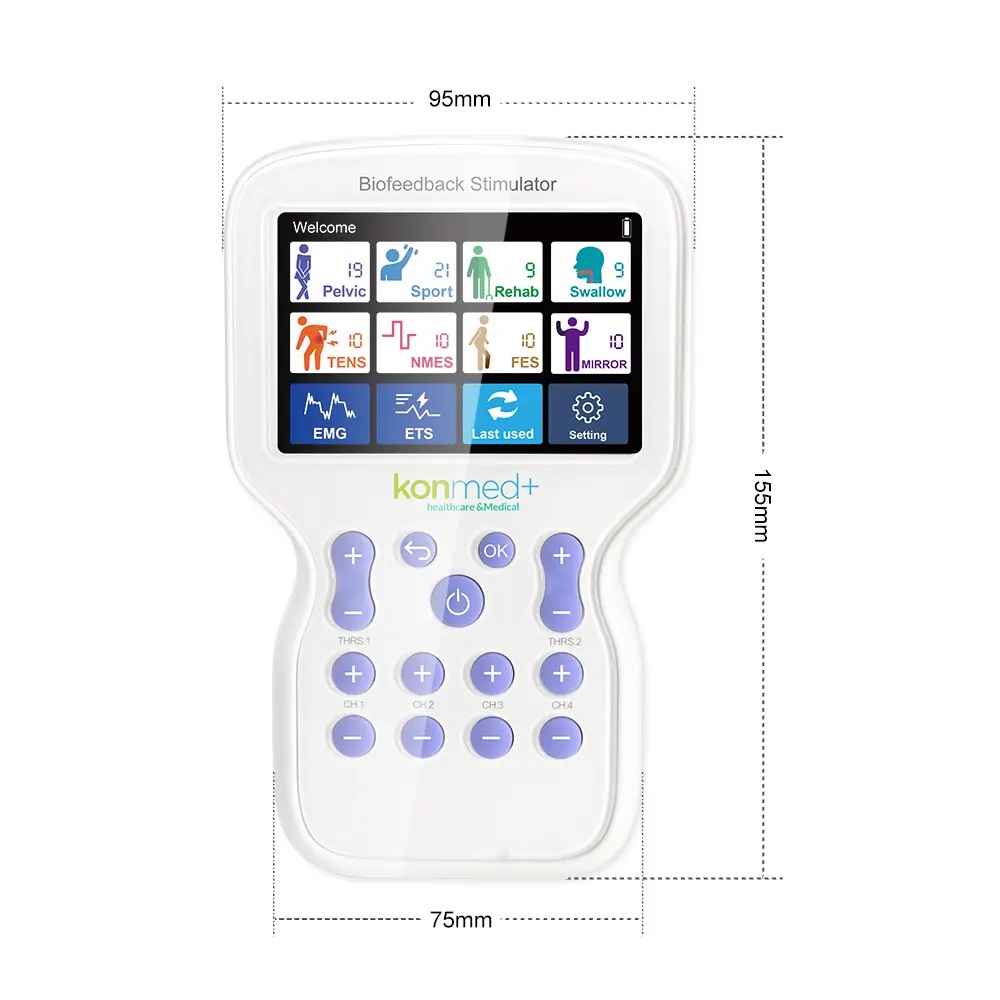

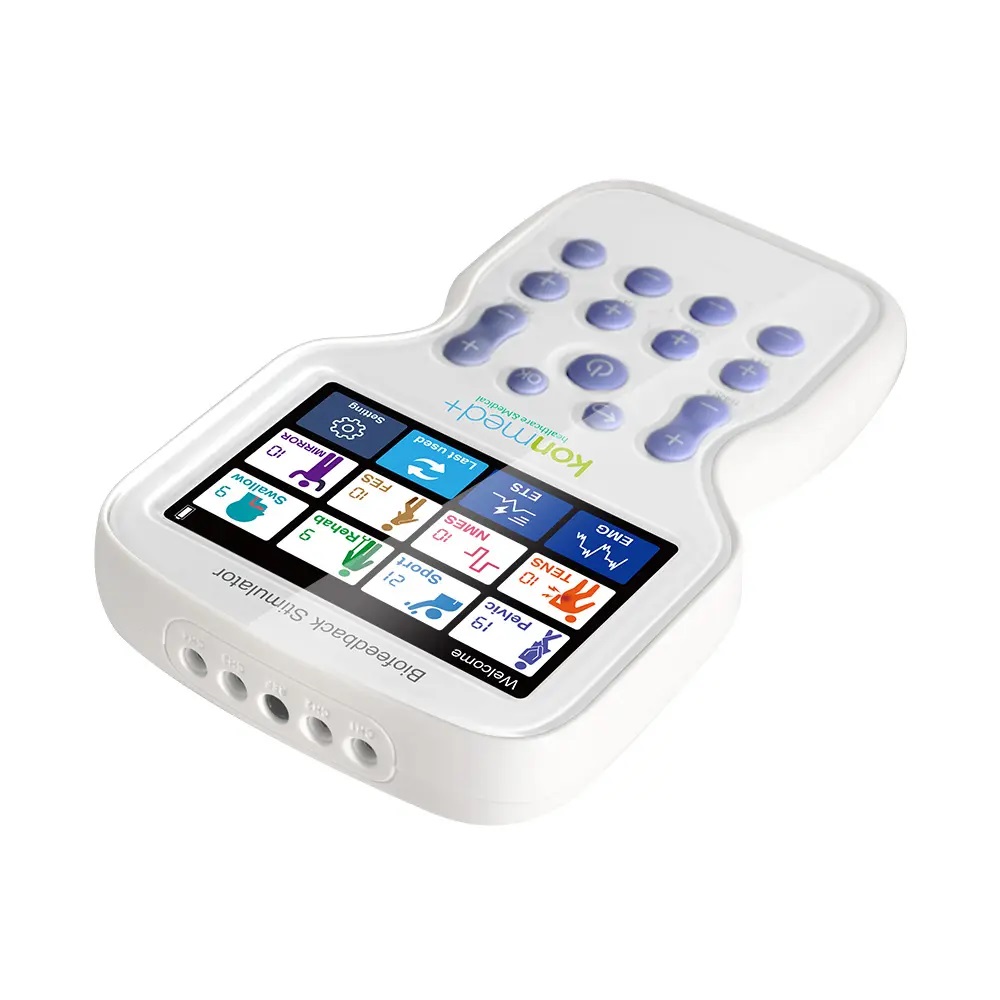

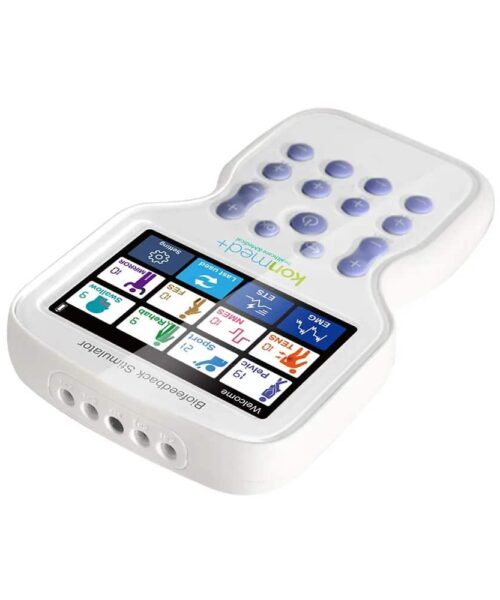

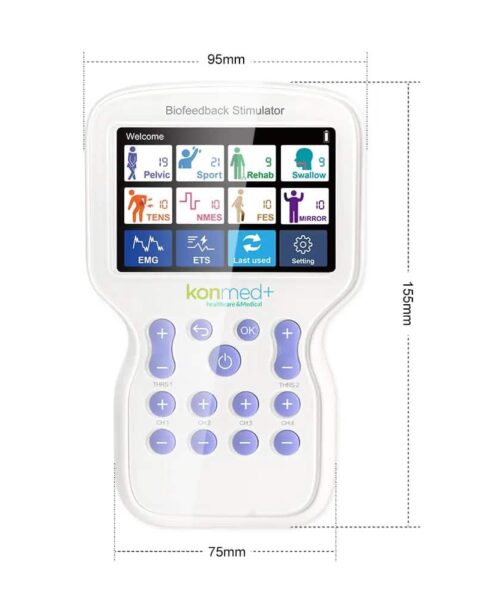

Konmed KM-580 Biofeedback Nerve and Muscle Stim + FES Stimulator

The Konmed biofeedback neuromuscular stimulator KM580 uses the principles of neuromuscular electrical stimulation and biofeedback therapy, and has significant therapeutic effects on patients with sports dysfunction, swallowing, stroke, pelvic floor muscle dysfunction, and postpartum rehabilitation.

Product Features

• New and Improved touch-screen with 3.5 inches full color display.
• D.C. 7.4V 1200mAh large-capacity rechargeable lithium battery.
• The new user friendly interface makes it a self-explanatory unit with the interactive learning on the go, including running EMG graph, Voice prompt, EMG biofeedback Games and Templates as well as many other helpful tools.
• 2 channel EMG (Biofeedback) combined with 4 channel stimulation.
• 2 channel ETS (EMG triggered stimulation) with 4 channel stimulation.
• Professional pelvic floor electromyography assessment report and body surface electromyography assessment report.
• Pre-set programmes for Incontinence treatment, Sports and muscular development, neuromuscular Rehabilitation, Pain relief and Swallow.
• Treatment records are automatically saved and can be queried.
• Applicable accessories include more than 10 kinds of vaginal probes, rectal probes and dozens of electrode pads to choose from.

Indications for Use For EMG
–Retaining of muscle activation.
–Coordination of muscle activation.
An indication of the force produced by muscle for control and maintenance of muscle contractions.
–Relaxation muscle training.
–Muscle re-education.
–EMG Game for training muscle power, explosive power and speed.

For EMG triggered Stim and Mirror
–Stroke rehab by muscle re-education.
–Relaxation of muscle spasms.
–Prevention or retardation of disuse atrophy.
–Increase local blood circulation.
–Muscle re-education.
–Maintaining or increasing range of motion.

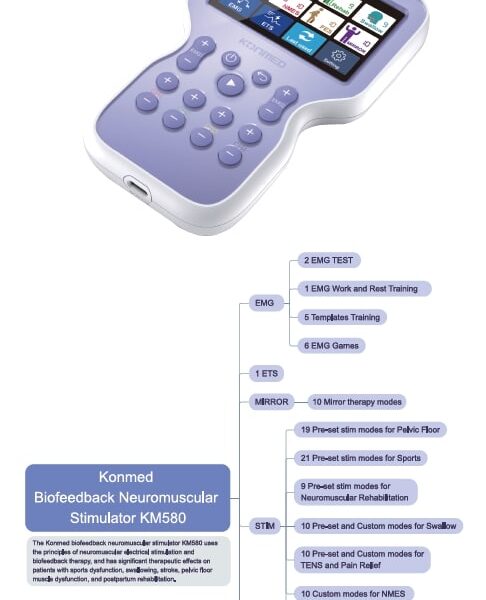

Product function

EMG
2 EMG Test
Standard pelvic floor assessment and Quick body surface electromyography assessment.

1 EMG Work and Rest Training
You can use Work and Rest for neuromuscular training.

5 Templates training (Biofeedback scenario)
The Template training is designed for a wide range of neuromuscular disorders and is particularly useful for pelvic floor workout training.

6 EMG Games
The EMG games are designed for biofeedback training. When the device is working, it uses myoelectricity as physiological information, and feeds back to the trainees through interface graphic display, voice broadcast, game actions and other forms.

ETS
Detect the myoelectric value, compare the myoelectric value with the preset threshold, and there should be electrical stimulation output after reaching it. ETS (EMG Triggered Stimulation) is primarily used for the training of weak skeletal muscles, but also found to be very effective in pelvic floor strengthening.

Mirror
Using mirror therapy (left/right discrimination exercises), the movement of the non-paralysed side of the limb is copied to the paralysed side.

STIM
Output electrical stimulation according to preset parameters and user-defined parameters. It is for Pelvic floor rehabilitation, Sports and muscular development, neuromuscular Rehabilitation, Swallow, TENS and Pain relief, NMES and FES.

STIM programmes

• 19 Pre-set stim modes for Pelvic floor rehabilitation.
• 21 Pre-set stim modes for Sports and muscular development.
• 9 Pre-set stim modes for neuromuscular Rehabilitation.
• 10 Pre-set and Custom modes for Swallow.
• 10 Pre-set and Custom modes for TENS and Pain relief.
• 10 Custom modes for NMES and 10 Custom modes for FES. Simple single-phase or multiphase operation: multiphase allows EMG/ETS/STIM to be combined in one programme.

CE and FDA Certified
