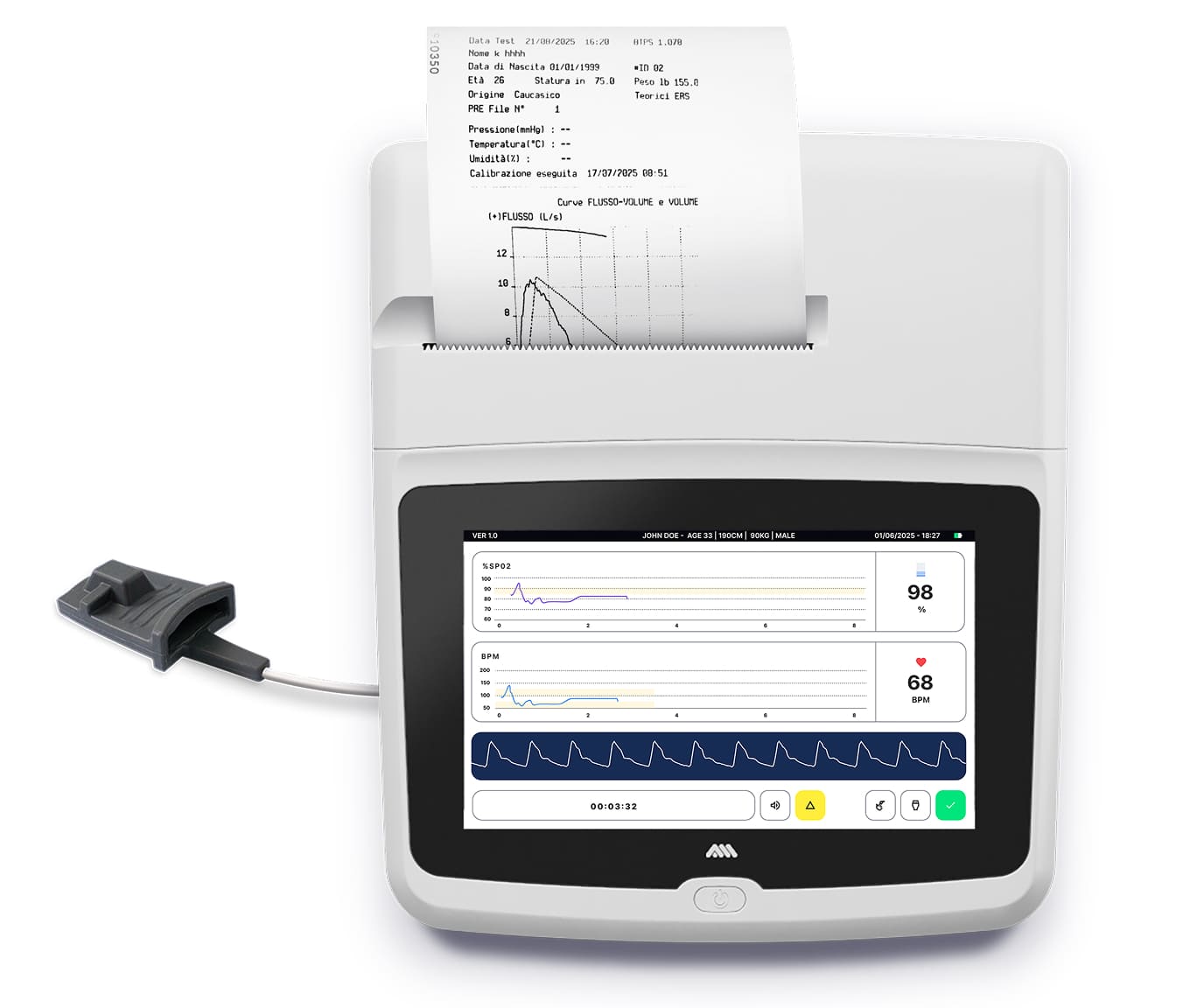

Introducing Spirolab PLUS – Next Generation Desktop Spirometer, with Oximetry
With its 7-inch high-resolution touchscreen, embedded thermal printer, and optional oximetry module, Spirolab PLUS is a complete all-in-one solution. Perform comprehensive spirometry testing directly on the device without needing a computer – or connect wirelessly to your clinic’s systems for real-time data synchronization.
Key Features & Innovations
Wi-Fi Connectivity – NEW
Connect wirelessly with MIR Spiro Software and EMR/EHR systems. Import worklists, send test results, and print reports – all with a single touch, completely wireless.
All-in-One Design
7-inch touchscreen, embedded thermal printer, and optional oximetry module. Perform complete spirometry testing without needing a computer.
SpO₂ Sensor
Integrated oximetry module for measuring blood oxygen saturation and pulse rate. Comprehensive respiratory and cardiovascular assessment in one device.
Worklist Management – NEW
Import patient lists from MIR Spiro Software or EMR systems via Wi-Fi, Bluetooth, or USB. Streamline your entire diagnostic workflow.
Direct Test Annotations NEW
Add clinical notes and observations directly to patient tests from the device. Enhance documentation without additional steps.
Flexible Interpretation
Supports both ATS/ERS 2019 and ATS/ERS 2021 interpretative criteria. Switch between standards according to your clinical needs.
Integrated Thermal Printer
Print detailed, customizable test reports instantly on the device. Also supports external PostScript printers via Wi-Fi or USB.
EMR/EHR Integration
Seamless integration with EMR/EHR systems through MIR Spiro Software using HL7, GDT, FHIR, and Exchange Protocol.

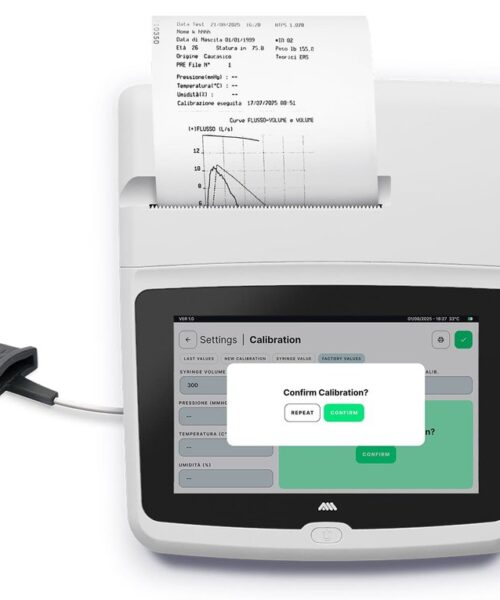

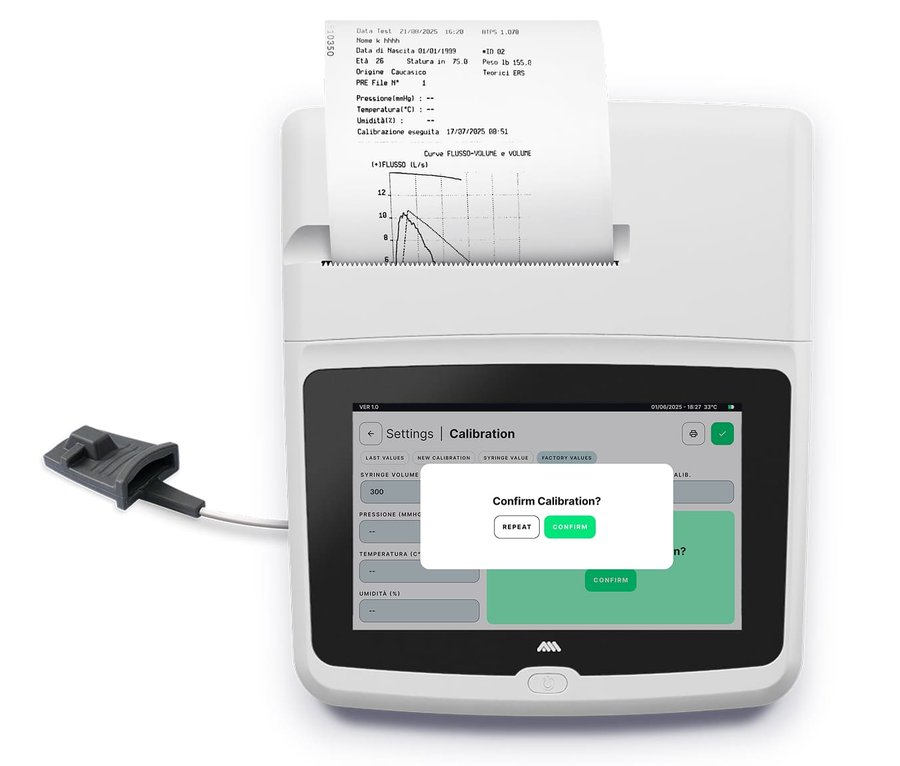

On-Device Calibration – NEW
ATS/ERS 2021 calibration executable directly on device. Calibration reports printable by the instrument for full compliance.
Technical Specifications
Spirometry Parameters
- FVC, FEV1, FEV1/FVC Ratio, PEF, FEF25-75
- VC, IVC, MVV, Lung Age
- PRE/POST Bronchodilator Comparison
- 45+ Additional Parameters for comprehensive analysis
- Real-Time Graphing during testing
- Automatic Quality Control and interpretation
Oximetry Module (Optional)
Hardware & Connectivity
Compliance & Standards
- ATS/ERS 2019 & 2021 Guidelines
- ISO 26782:2009 (Spirometers)
- ISO 23747:2015 (Pulse Oximeters)
- CE Marked Medical Device
- FDA Cleared (where applicable)
Feature Comparison
| Feature | Spirolab PLUS | Spirolab PLUS + Oximetry | Spirolab PLUS ESI |
|---|---|---|---|
| 7″ Touchscreen | ✓ | ✓ | ✓ |
| Thermal Printer | ✓ | ✓ | ✓ |
| Wi-Fi Connectivity | ✓ | ✓ | ✓ |
| Bluetooth & USB | ✓ | ✓ | ✓ |
| SpO₂ Sensor | Optional | ✓ Included | Optional |
| EMR/EHR Integration | ✓ | ✓ | ✓ |
| Worklist Management | ✓ | ✓ | ✓ |
| Direct Test Annotations | ✓ | ✓ | ✓ |
| On-Device Calibration | ✓ | ✓ | ✓ |
| Multi-Device Management | — | — | ✓ |
| Enterprise Support | Standard | Standard | ✓ Premium |
Ideal For
- Pulmonary Clinics – Comprehensive spirometry testing with optional oximetry for complete respiratory assessment and patient management.
- Occupational Health – Portable yet powerful desktop solution for workplace spirometry screening and compliance testing.
- Primary Care – All-in-one device for general practitioners to conduct spirometry without additional equipment or computers.
- Research Facilities – Advanced parameters and data management for clinical research and epidemiological studies.
Experience the next generation of desktop spirometry with Spirolab PLUS. Faster testing, easier reporting, complete wireless integration.
Accessories & Support
Included with Spirolab PLUS
- MIR Spiro Software (Windows/macOS)
- USB Cable & Power Supply/Battery Charger
- Miniflowmeter with Cable
- Reusable & Disposable Mouthpieces
- Nose Clips
- Thermal Paper Roll
- Quick Start Guide & User Manual
Optional Accessories
- SpO₂ Sensor Module (if not included)
- External PostScript Printer
- Additional Thermal Paper Rolls
- Replacement Turbines & Mouthpieces
- Carrying Case for Portability
- Extended Warranty & Support Plans
See Technical brochure here
