Rebless™ Upper and Lower Limb CPM

Availablity

Available on back-order

Share this product

Description

Rebless™ Upper & Lower Limb CPM

FDA registered, robotic rehabilitation device for upper and lower extremities, providing motion to the elbow, wrist, ankle, and knee joints.

With multiple operating modes, Rebless™ allows for passive, active-assisted, active and resisted motion, so that therapy can be customised based on each individual patient’s condition and progress.



Main Features:

Multi-Joint Application

A single device for wrist, elbow, ankle, and knee.

Smart Tele-Rehab Platform

Seamlessly review treatment data and communicate with
patients for more efficient rehabilitation management.

Wide Rehabilitation Scope

Applicable for treating neurological and musculoskeletal
movement disorders.

Diverse Treatment Modes

Assist-as-Needed technology and Continuous Passive Motion (CPM)
allow patients to change treatment modes depending on the
patients’ abilities. There is also a resistance mode available.

Treatment Positions:

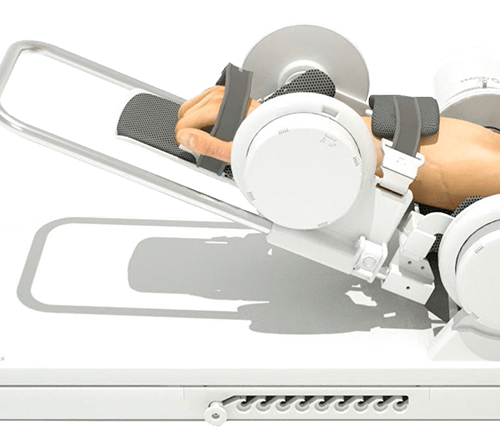

  1. Elbow – Flexion and extension

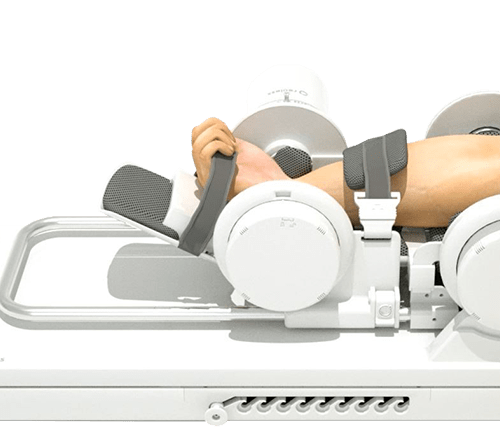

  2. Wrist – Radial Deviation, Extension, Flexion
  3. Knee – Flexion & Extension (sitting), Flexion & Extension (Supine)
  4. Ankle – Dorsiflexion & Plantar Flexion (sitting), Dorsiflexion & Plantar Flexion (supine)

Technical Specifications:

Operating range Elbow 0° ~ 140°
Wrist 0° ~ 60°
Knee (Supine position) 0° ~ 80°
Knee (Sitting position) 0° ~ 60°
Ankle 0° ~ 110˚
Speed 40° ~ 400° per min
Patient sizing Forearm: 22.8 ~ 29.6 cm
Tibia: 36.1 ~ 46.4 cm
Patient weight Max. 135 KG
Electrical Classification ClassⅡ. Type BF. IP21
Rating Input 100-240 VAC, 2.5-1.3A / 50-60Hz
Output 24 VDC, 9.2 A,
Max. 221 W
Maximum Torque: 30 Nm
Product Weight 18 KGs
Size 79.2 x 34 x 23.7 cm
Warranty 1 Year Warranty
