Rimec Fisiotek 3000 N

Mobilisation of the Knee and Hip in a solid package

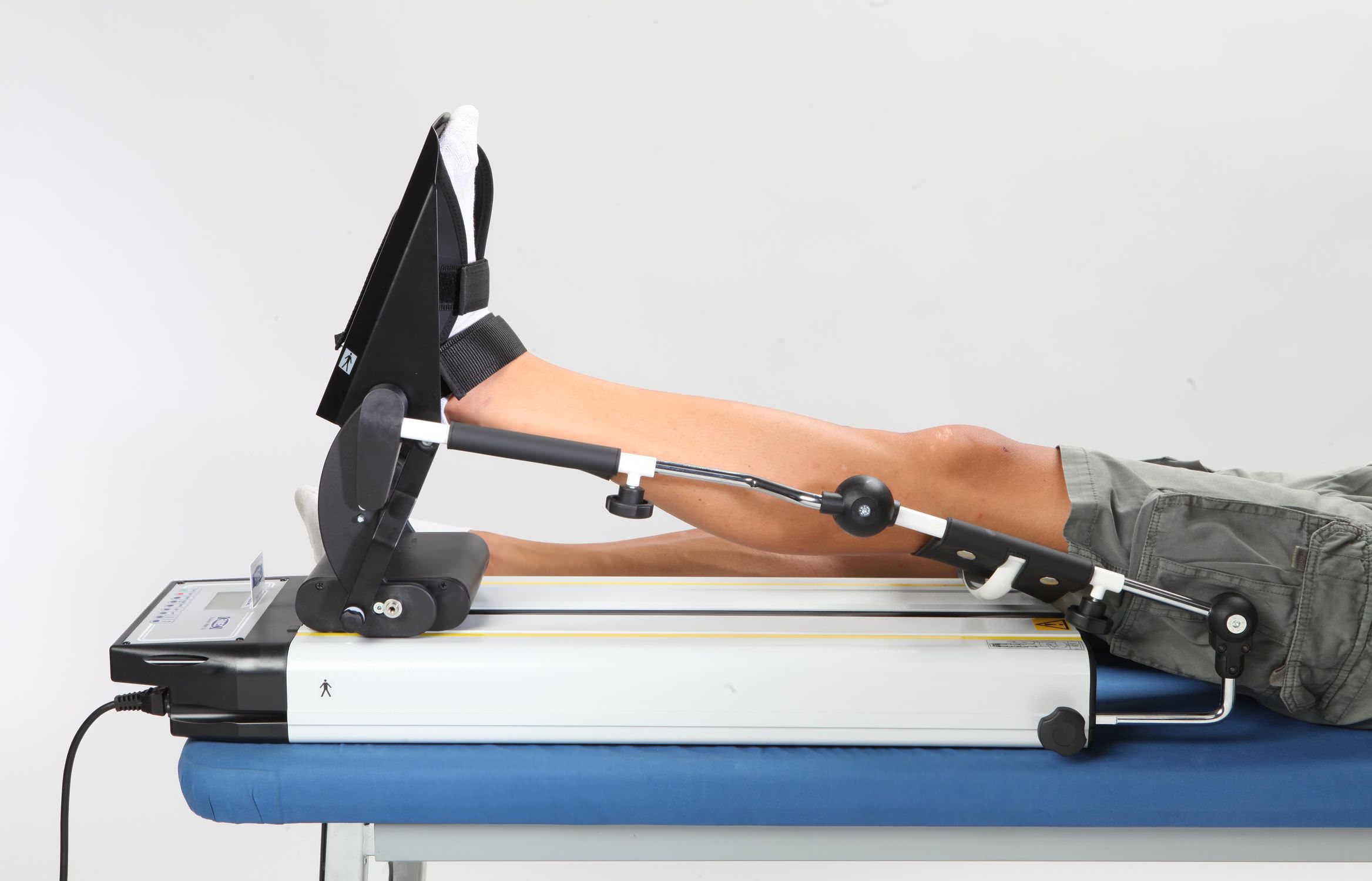

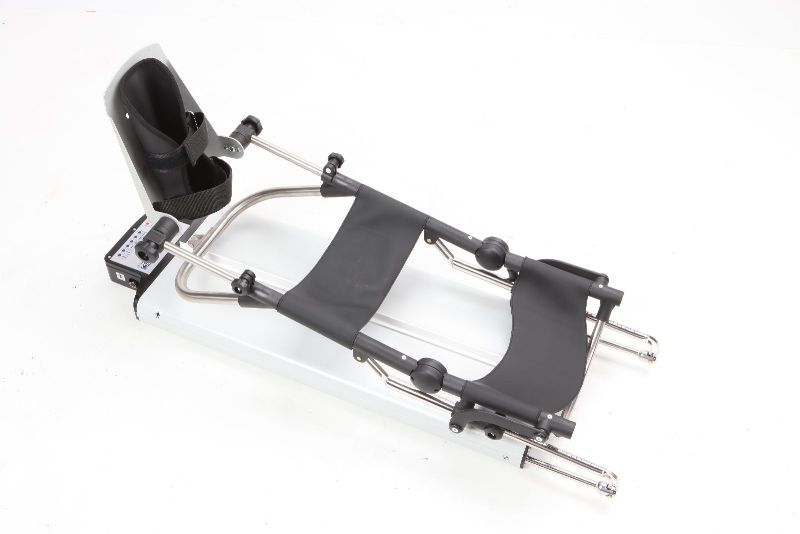

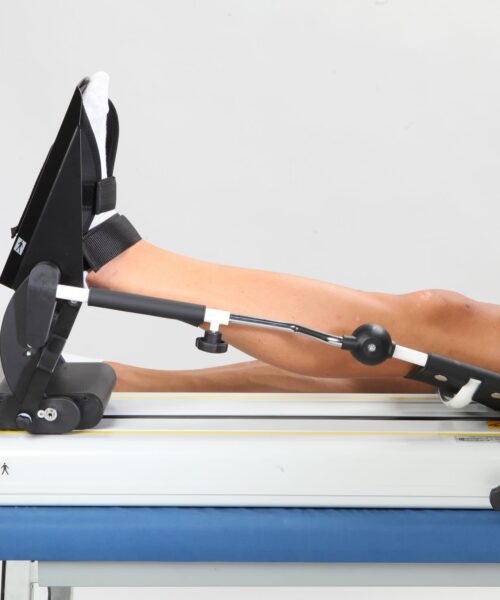

Fisiotek 3000 N model uses flexion-extension movement to allow mobilisation of the knee and hip. The asymmetric frame structure permits anatomically correct movement: placement is made according to the patient’s limb length,
measured from the greater trochanter to the lateral malleolus. Limbs from 72 cm to 100 cm in length can be rehabilitated. Additionally, an accessory for limbs less than 72 cm in length is available to provide rehabilitation support for limbs as short as 61 cm.

The device can be programmed by means of:

• The control console;
• The hand-held programmable keypad;



Both units display new self-explanatory graphic symbols that provide clear images to make use easy and intuitive. The programmable features make it possible to meet different rehabilitation needs through means of customised and therefore more effective control.

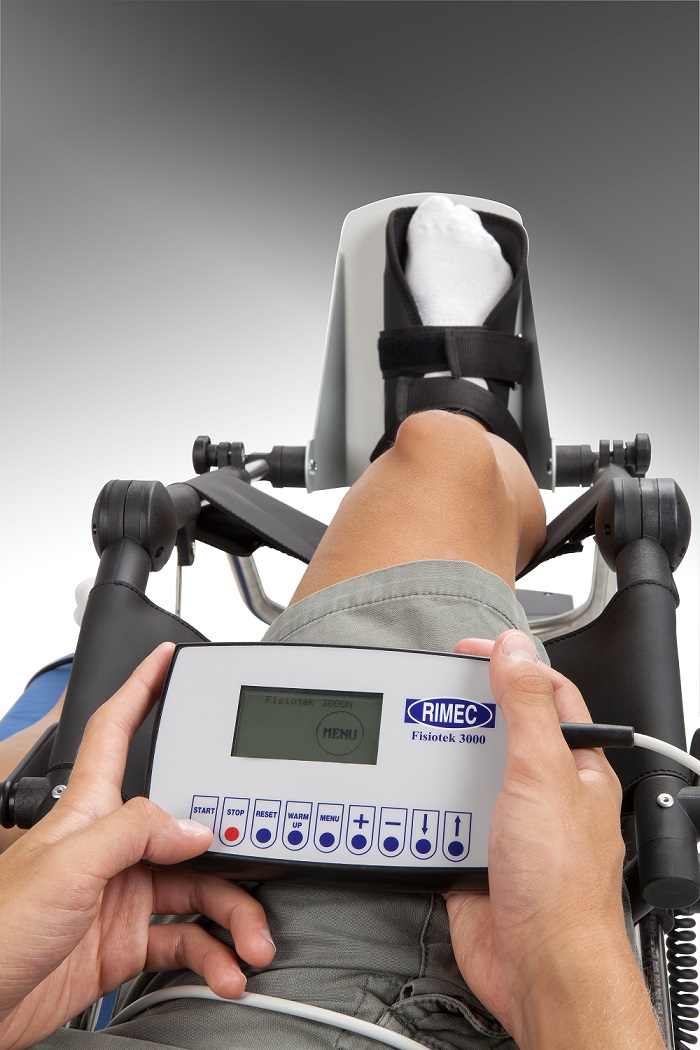

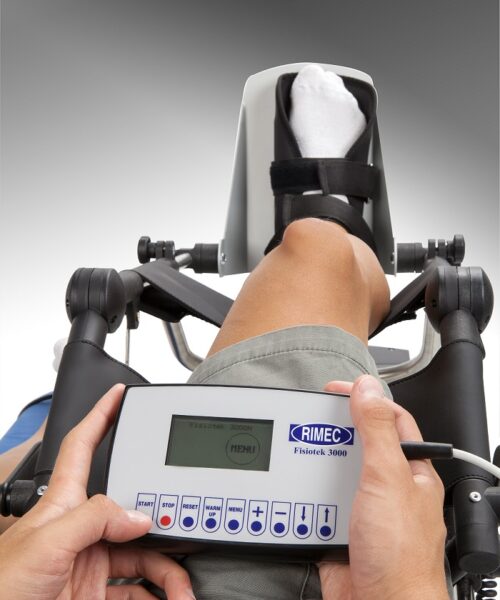

Hand-held programmable keypad:

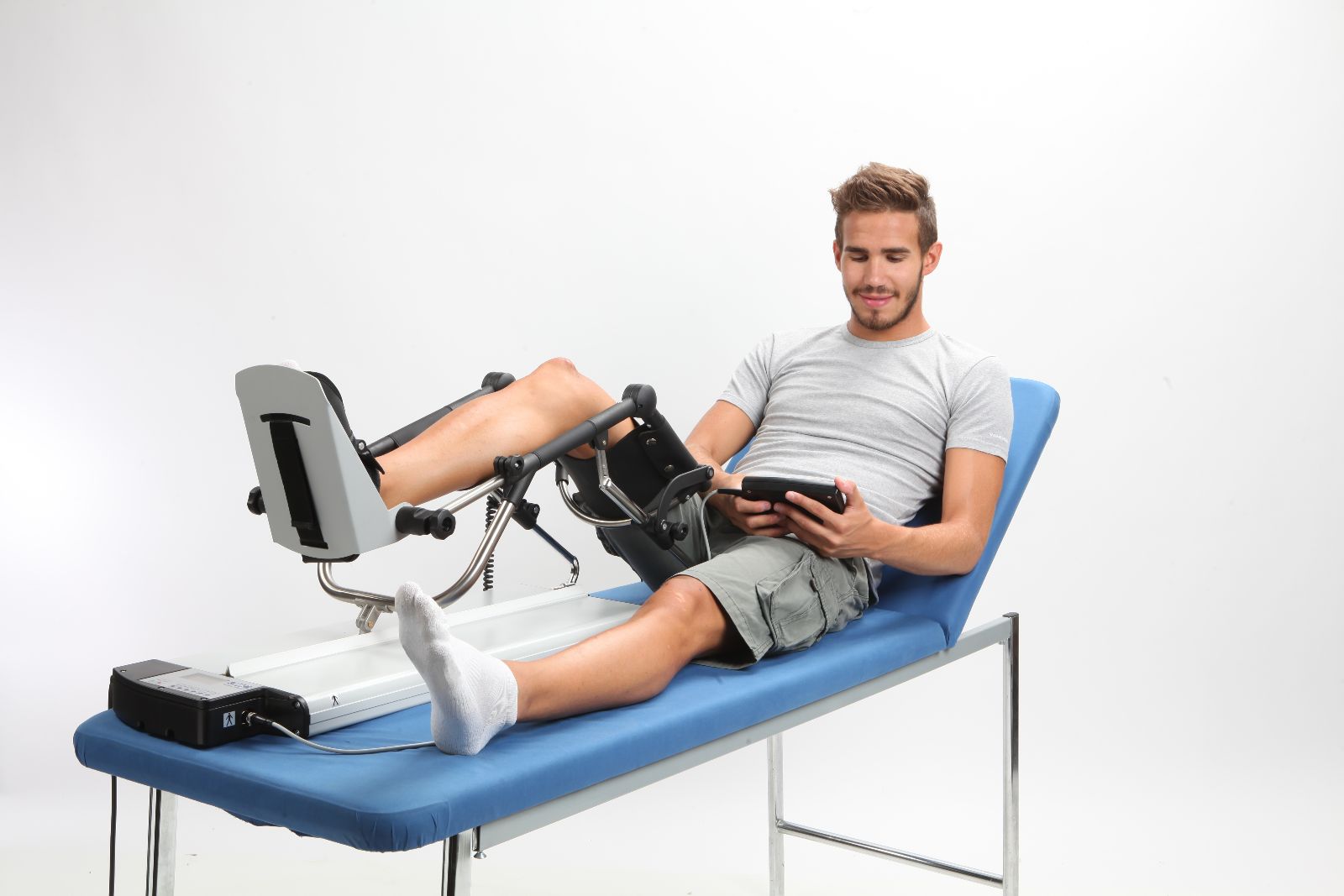

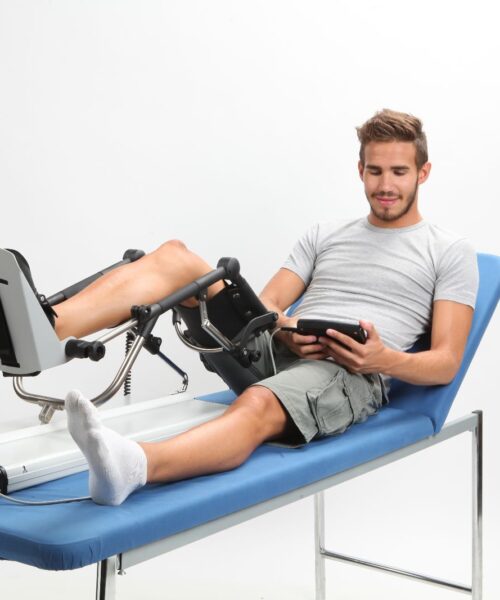

the hand-held programmable keypad has been designed to empower the patient to actively participate in rehabilitation therapy (when possible). The keypad unit contains all the programming keys for the device, as well as START & STOP buttons for movement control.

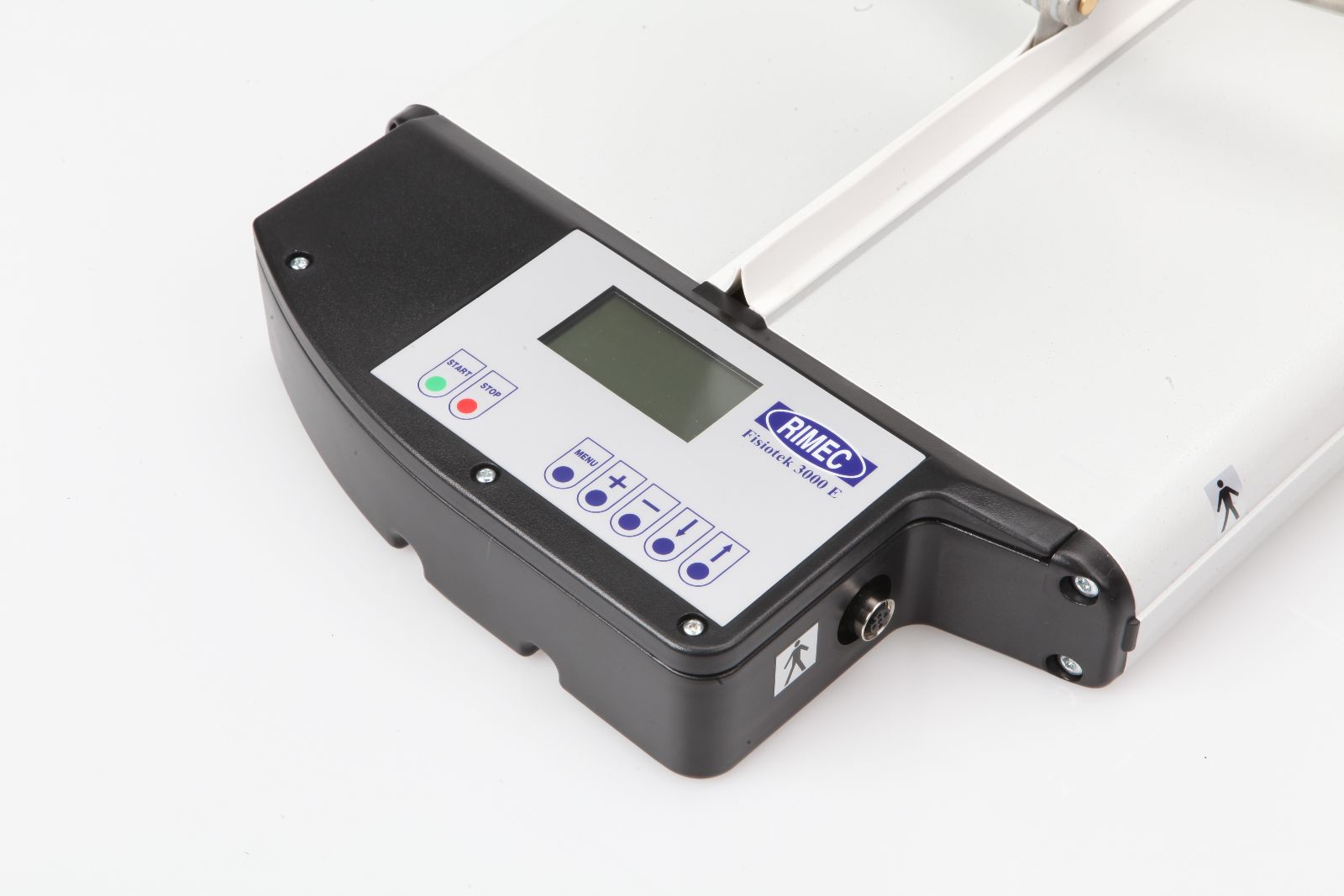

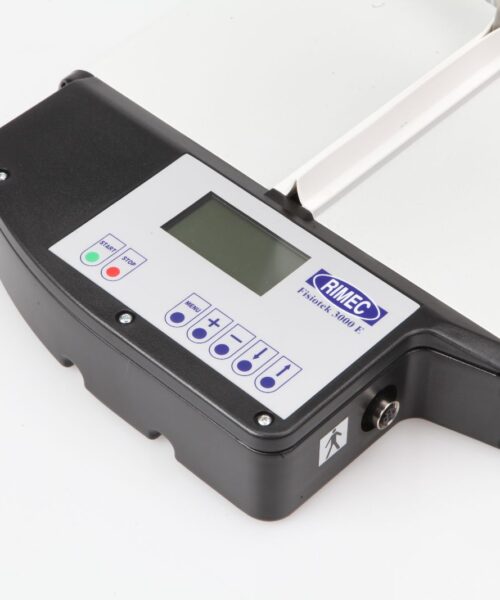

Control console:

The control console is used to program the functions of the Fisiotek device. The information display provides extremely sharp graphic symbol images that are clear and easy to understand to make use intuitive.



Remote-controlled START & STOP: the patient can use the Start & Stop buttons to fully control movement of the device.



Engineering data



Power supply:                                                        85 ÷ 260V ~ 50 ÷ 60 Hz
Electrical safety:                                                    Class I B Standard EN 60601-1·
Electromagnetic compatibility:                         Group 1 Class B Standard EN 60601-1-2·
Classification according to Dir. EEC 93/42:   Class IIa
Weight:                                                                   KG. 14



Programmable functions



• Flexion-extension knee movement range from -10° to 120°
• Hip movement range from 7° to 115°
• Flexion speed
• Force from 0 to 40 kg
• Working time
• Pause flexion
• Warm-up (menù’s page)
• Flexion limit repetitions
• Extension limit repetitions



Accessories:



• Hand-held programmable keypad
• Remote-controlled START & STOP
• Trolley for internal use



When should it be used?



• Surgical repair of the knee’s extensor mechanism;
• Meniscectomies and meniscal sutures;
• Surgical treatments of fractures and pseudoarthrosis;
• Osteotomy;
• Artificial hip and knee;
• Arthroscopy;
• Arthrolisys.
