Description

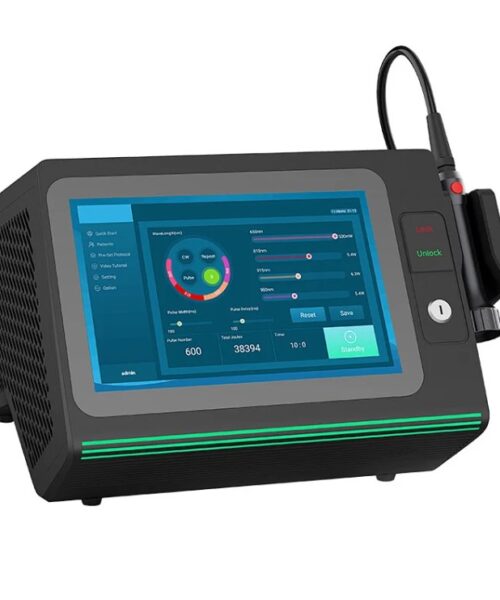

Lotuxs Laser Smart S30B – Combined Dual Wave Laser Therapy, for fast and effective results

Class 4  – High Powered laser therapy with a Peak Continuous Power Output of 30 watts,  allowing shorter therapy times with unprecedented results

The new Smart S30B represents the evolution of the Class IV Laser systems; it offers all the features of the well-known and appreciated Mphi model, with a new handpiece, with a peak laser source of 75 Watt, together with highly specialised distinctive features, such as the specific cone light guide and advanced software for laser puncture sessions.

The high output of the Applicator with a combined laser output of 810/980nm  Allows for laser penetration of 3-6cm (depending on the tissue) opening up a whole new range of treatments as opposed to traditional laser.

The software also allows personalization of the protocols, in a specific dedicated area, allowing the creation and storage of parameters ready to be used at any time.

On Screen Therapy guides automatically calculate the dosage required for a patient depending on the indication, as well as the Skin type and tissue area. This ensures that you are providing you patient with the correct dosage, Reducing the chance of over treatment.

Main indications:  sprains, muscle tears, tendinitis, brachial neuralgia, craniofacial pain, bursitis, lumbago, arthritis, articular pain, oedema, hematoma.

Technical characteristics

• Handpiece with optical group consisting of an MLS® source with power up to 1.2 W -Peak Power 75 W Therapeutic terminal, Target Area of ø 2 cm highlighted by high-efficiency red LED light
• Laser acupuncture terminal, Target Area of ø 4 mm highlighted by high-efficiency red LED light
• High resolution LCD colour touch screen user interface
• Simultaneous management of two independent channels
• 5 treatment modalities:
  A) specific pathologies
  B) pain management
  C) anti-oedema
  D) Bio stimulation
  E) laser acupuncture
• Possibility to customize every treatment parameters
• Dedicated area to create and save new customised programmes for each terminal/applicator
• MLS® modulation in CPW or FPW mode (Synchronized emission of Continuous Pulsed Waves or Frequenced Pulsed Waves)
• Modulation frequency from 1 to 2000 Hz with 1 Hz steps
• Power level 25%, 50%, 75% and 100%
• Fixed duty cycle at 50% or variable
• Treatment duration from 1” to 99’59” with 1” steps
• Automatic calculation of the emitted energy according to the set parameters

Alarms and safety features

• Laser emission warning light
• Interlock
• Acoustic signal selectable by operator
• Date and time
• Password to operate the device
• Language option
• Ready to be connected to the remote Laser emission signaling device

Included accessories

• Nº 2 light guide for laser puncture
• N° 2 laser safety goggles
• Unit carrying case
• Table handpiece holder
• Shoulder strap for portable use

Size and weight:

36 x 28 x10; 3 kg

Power supply

• External power supply 18V‗ 50VA
