Description

This professional-quality stainless steel goniometer set features clearly marked degree increments and easy-to-read centimetre and inch linear measurements.

All heads are calibrated to be used with ISOM (International Standard Of Measurements, STFR) system.

This carrying case contains the most frequently requested stainless steel and x-ray goniometers.

This set includes:

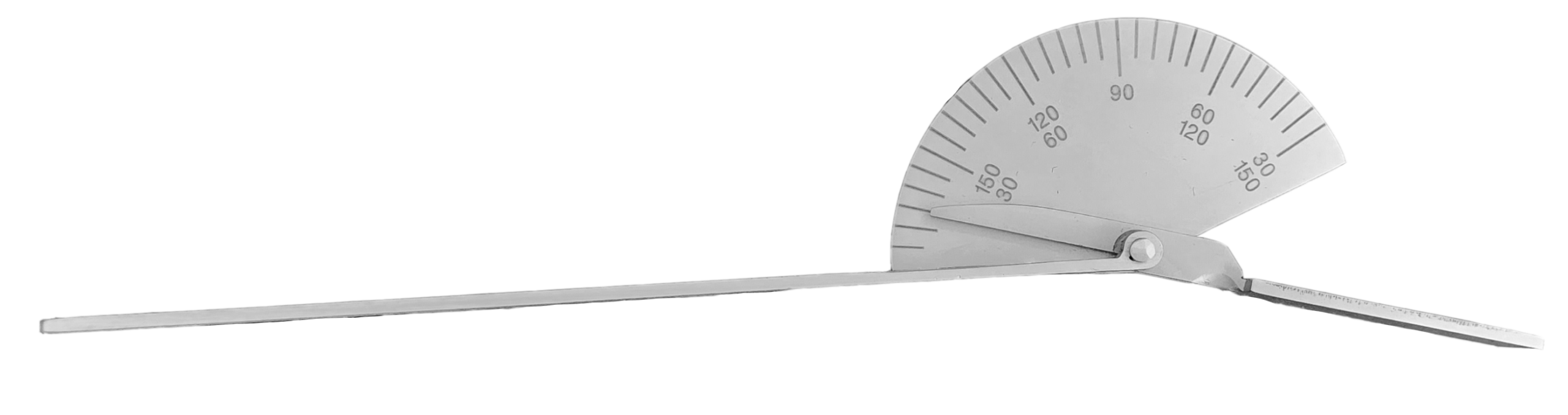

14cm Finger Goniometer:

Measures range-of-motion of finger joints (metacarpophalangeal and interphalangeal) and other small joints including toes. Head has two opposing 180° scales marked in 5° increments. All linear scales in inches and centimetres on the arm.

18cm Robinson Pocket Goniometer:

Pocket-Sized goniometer. 180° scale in 5° increments. 4 inch linear scale and 10cm linear scale on the arm.

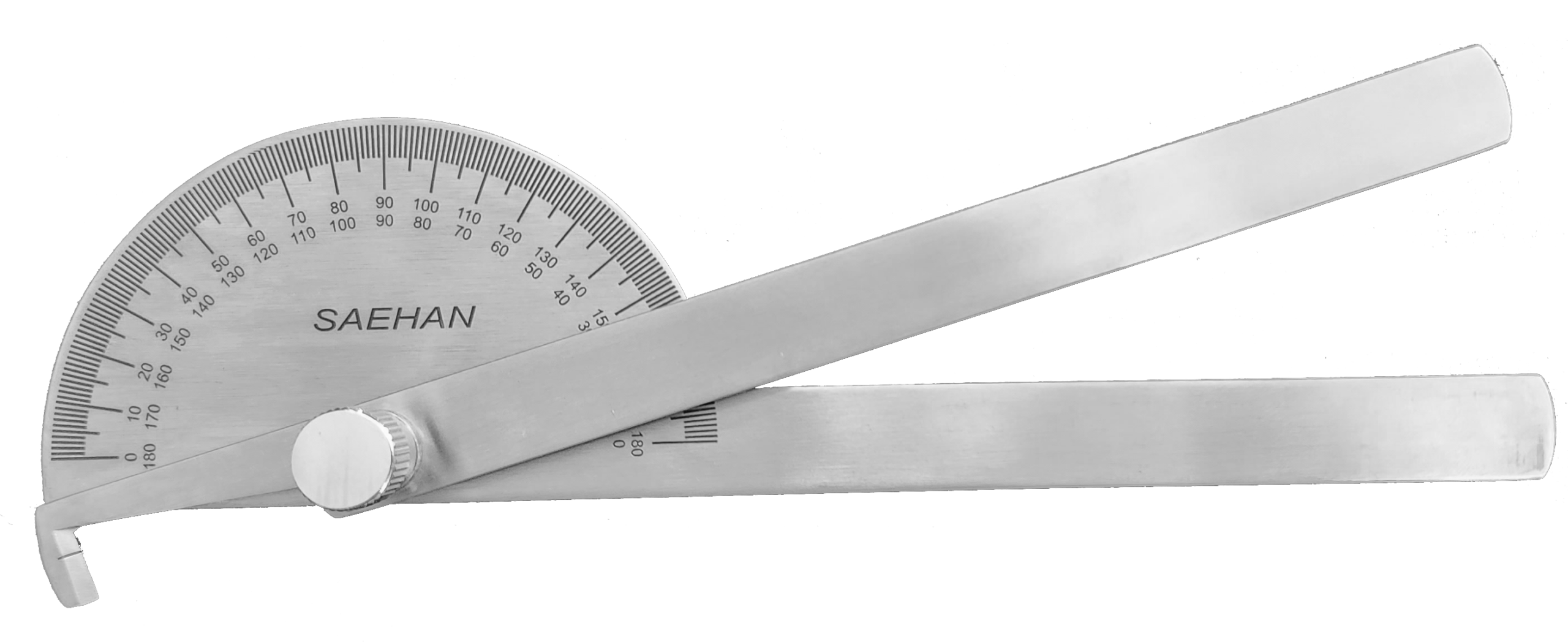

19 cm Goniometer – 180°:

Two opposing scales marked in 1° increments. Tension between arms is controlled by the thumb knob.

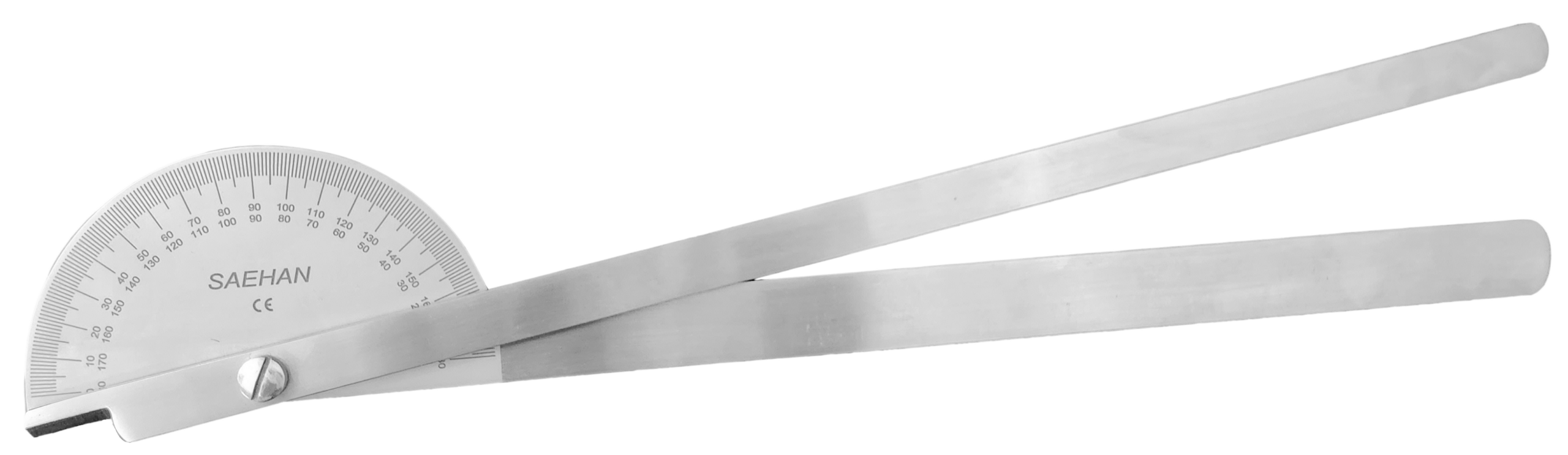

36cm Goniometer – 180°:

Two opposing scales marked in 1° increments. Extra-long arms for measuring all joints. Non-locking friction arm.

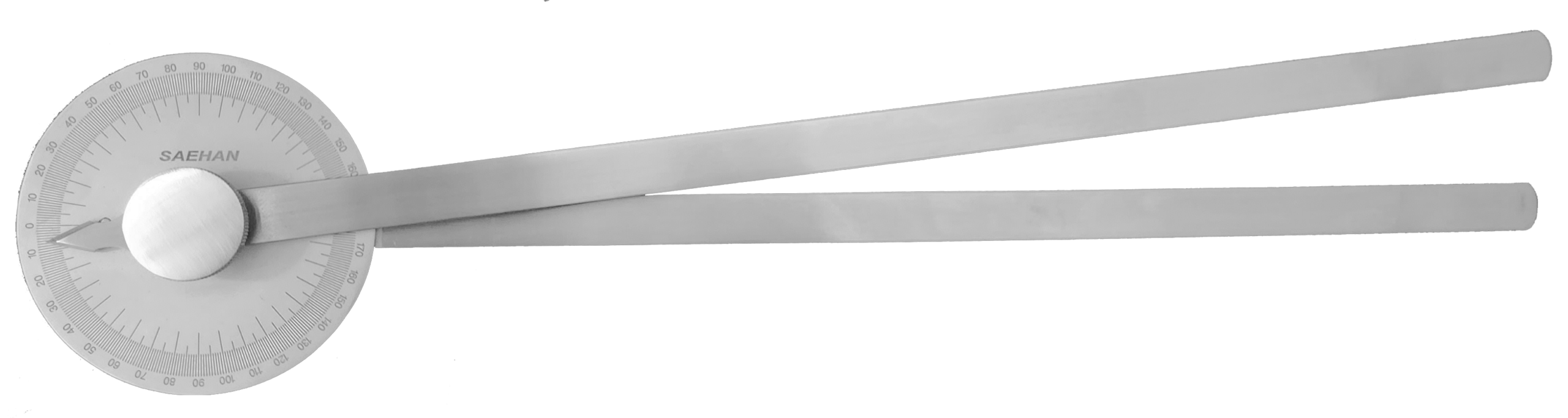

36cm Goniometer – 360°:

One 360° and two 180° scales that read in opposite directions. All marked in 1° increments.

Locking Arm. Knurled knob adjusts arm tension.

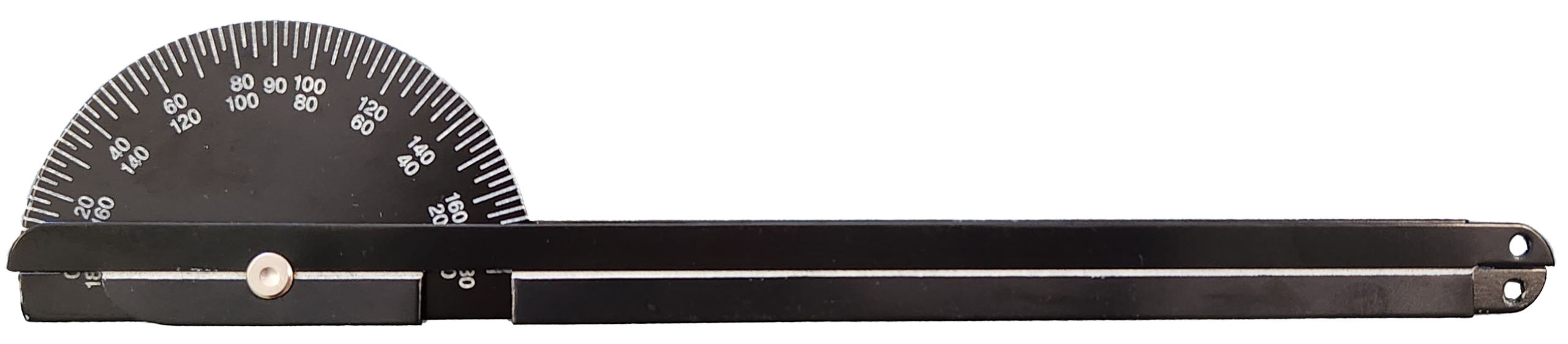

20cm X-Ray Goniometer:

Document Angles. Two Opposing Scales marked in 2.5° increments. Black aluminium with easy-to-read white radiopaque markings.

Hard Carry Case.
