Description

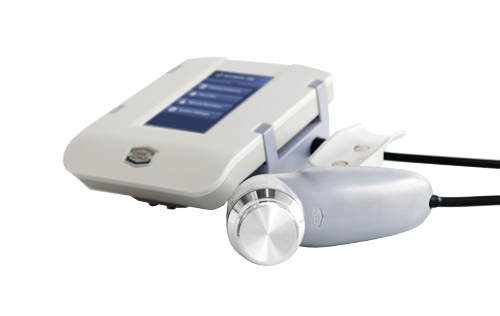

The Sonopuls 190: the small, easy-to-use, fast and portable solution for ultrasound therapy!
The new Sonopuls 190 is fast and easy. A unit with an extremely fast start-up, a fast way to set-up treatment parameters and a unit that gives a fast therapeutic results. The compact design, the clear TFT screen, the touchscreen interface and the ergonomic design turn this small unit into a big asset for the therapist. Ultrasound therapy is a proven effective treatment method for numerous pathologies.
In order to simplify the selection a number of preprogrammed protocols are stored in the Sonopuls 190. These evidence based protocols provide you with clear instructions and will set the unit parameters automatically for treatment.
Technical specifications:
Ultrasound frequencies | 1 and 3Mhz |
Ultrasound Output | Continuous and Pulsed |
Duty cycles | 5, 10, 20, 33, 50, 80% |
Pulse frequency | 16 Hz, 48 Hz and 100 Hz |
Intensity | 0-2 W/cm2 continuous, 0-3 W/cm2 pulsed |
Number of US connections | 2 |
US applicator large | 5 cm2 |
US applicator small | 0,8 cm2 |
Pre-programmed treatment suggestions | 22 Evidence Based |
Programmable positions | 20 |
